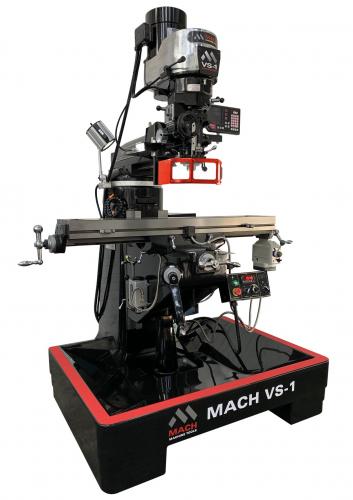

MACH VS 1 SP
Turret Milling Machine
 |
|
Equipment and Features
The MACH VS-1 SP delivers high accuracy, speed, reliability and outstanding value too.
The machine is built to exacting quality standards and features:
Hand scraped hardened and ground dovetail slideways;
Turcite B on the machines’ ways, slideways and gibs;
Hardened and ground table tops and T-slots, with nickel-coated lead screws.
The machine is equipped with a state-of-the-art 3HP EVS Yaskawa-controlled inverter motor that provides absolute control over the infinitely variable spindle speeds (up to 5,000rpm).
The machine is supplied with an impressive range of features - all supplied as standard. These include:
2-Axis Newall DRO;
Low voltage LED lighting;
Power feed to the X-Axis;
Coolant equipment;
Stand on style composite base splash tray.
Machine Specification
TABLE TRAVEL (X-AXIS) 850 mm (with power feed)
SADDLE TRAVEL (Y-AXIS) 305mm
QUILL TRAVEL 127 mm
WORKTABLE (STANDARD) 1245 x 229 mm
T-SLOT SIZE 16 mm
WEIGHT OF WORKPIECE (MAX.) 340 kg
BORING RANGE 152 mm Mild Steel
SPINDLE DIAMETER 48 mm
SPEED, HIGH (INFINITELY VARIABLE) 420 - 5000 rpm
FLOOR SPACE 1620 mm x 1350 mm
MACHINE HEIGHT 2140 mm
MACHINE WEIGHT 950 kg
POA
