Ajax AJUM 350
(New) Universal Milling Machine
 |
|
Equipment and Features

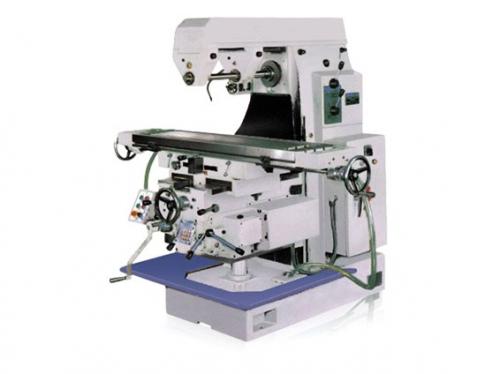

( Machine Picture is Model AJUM 300 )
Pendant Controlled
Fully powered knee with feeds & rapids in all axes.
Also available with Universal Head.
OPTIONS:-
Universal Milling Head
2 or 3 Axis Acu-rite VUE or S300 Digital Read Out System
Clamping Kit
Machine Vices: 100mm, 150mm or 200mm
Dividing Head
Collet Holders with Collets
TO REQUEST A QUOTATION PLEASE EMAIL YOUR NAME & COMPANY DETAILS & THE AJAX MACHINE MODEL NUMBER - THANK YOU.
Machine Specification
Table: 1500mm x 300mm
`X` Travel: 1050mm
`Y` Travel: 320mm
Vertical Range: 470mm
Distance from the Centre of the Spindle to Table: 0 - 460mm,
Weight on Table: 300 Kgs
Spindle Taper: 40 ISO
Speeds: 36 - 1415 rpm
Number of Speeds: 12
Number of Feeds: 12
Longitudinal Feeds: 11 - 571mm/min,
Cross Feeds: 11 - 571mm/min,
Vertical Feeds: 6 - 236mm/min,
Longitudinal Rapids: 2500mm/min.
Cross Rapids: 2500mm/min,
Vertical Rapids: 1250mm/min,
Spindle Drive Motor: 3.7 Kw
Feed Motor: 2.2 Kw
Nett Weight: 2750 Kgs.
