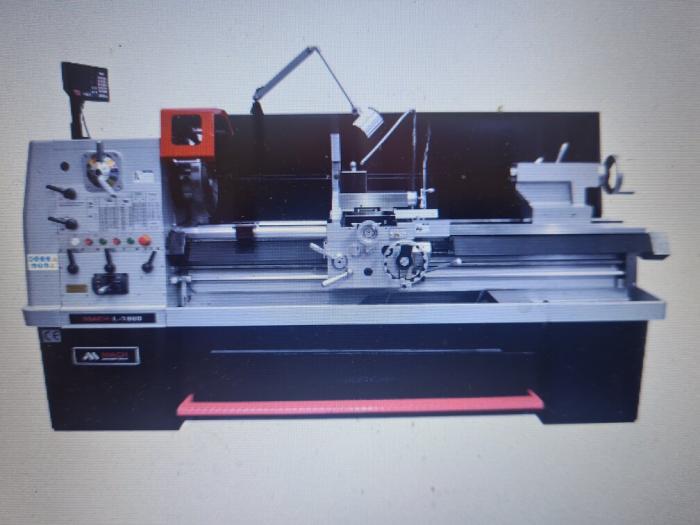

MACH L-1840 / L- 1860 / L- 1880
Gap Bed Centre Lathe
 |
|
Equipment and Features
The MACH L-1860/1880 features a heavy-duty spindle housed in a robust headstock for increased flexibility and productivity (up to1600rpm).
The machine’s headstock is rigidly designed and built featuring British Matrix manufactured clutches, nylon safety pins in the end train and Chromium Molybdenum gears and shafts.
The MACH L-1860/1880 has up to 2000mm distance between centres, up to 231mm height of centre and X-axis and Z-axis travels of 272mm and 137mm, respectively.
The machine is equipped with a 3-axis Newall DP 500 Digital Readout (DRO), 3 & $ jaw chucks and quick change tool posts.
The machine also features a) induction hardened and ground gears and shafts for reliable and long-life performance, b) Meehanite cast, anti-vibration and stress-relieved beds for high accuracy and process reliability featuring Turcite B coating between the bed and carriage, c) Anti-float-designed backlash eliminators for improved accuracies, surface finishes and tool life.
The lathe is equipped with a tailstock for increased flexibility and reliability (Quill diameter = up to 76mm; Quill travel = up to 165mm).
A variable speed option is also available.
Machine Specification
CENTRE HEIGHT Up to 231 mm
SWING OVER BED Up to 462 mm Dia
SWING IN GAP Up to 710 mm
SWING OVER CROSS SLIDE Up to 298 mm Dia
DISTANCE BETWEEN CENTRES 1000 mm/1500 mm/2000 mm
WIDTH OF BED Up to 345 mm
SPINDLE NOSE D1-8
SPINDLE BORE 80 mm
SPINDLE SPEEDS 20-1600 rpm
CARRIAGE LENGTH 542 mm
CROSS SLIDE TRAVEL 272 mm
TAILSTOCK QUILL DIA Up to 76 mm
QUILL TRAVEL Up to 165 mm
QUILL TAPER MT No 5
MOTOR 7.5 kW (10 HP) AC Type
COOLANT PUMP 0.25 HP
WEIGHT 2000 kg/2350 kg/2700 kg
SIZE L X W X H Up to 3535 x 1120 x 1745 mm
NEWALL DP500 2 AXIS READOUT FITTED
POA
