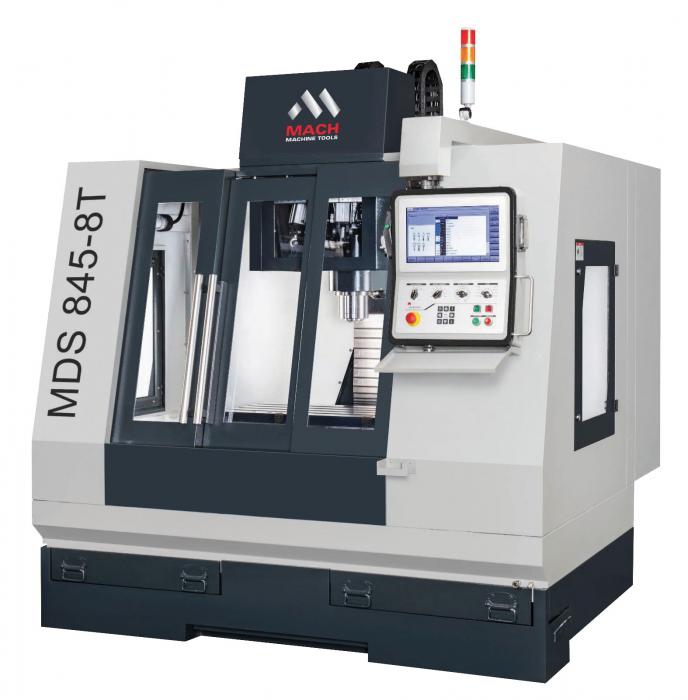

MACH MDS 845 - 8T Spider
Cnc Toolroom Mill
 |
|
Equipment and Features
MACH Machine Tools’ DynaPath-controlled CNC toolroom mills, with their integrated tool changers, are a cost competitive alternative to a vertical machining centre. The MDS 845-8T has an 8-tool position tool changer positioned around the machine’s spindle. The machine is supplied, as standard, with an impressive range of technology features.
Machine Specification
SPINDLE TAPER BT40
SPINDLE RPM 8000 rpm Direct Drive (10,000 rpm option)
SPINDLE POWER 5.5 kW
TABLE LENGTH 850 mm
TABLE WIDTH 420 mm
X-AXIS TRAVELS 800 mm
Y-AXIS TRAVELS 450 mm
Z-AXIS TRAVELS 450 mm
MAX TABLE LOAD 220 kg
POA
