MACH SL-203 B
Cnc Turning Centre
 |
|
Equipment and Features

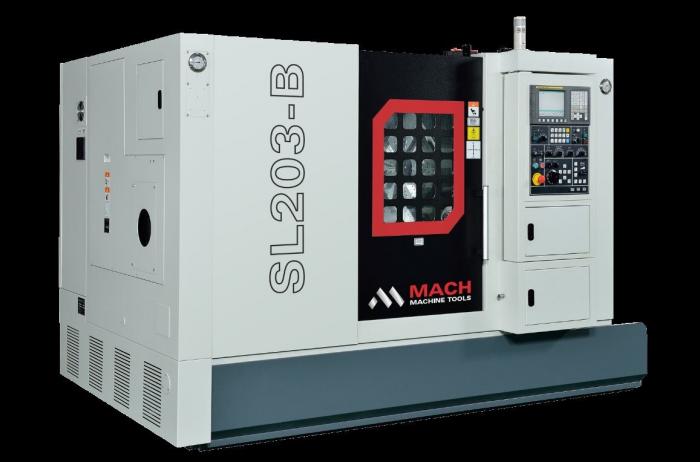

The MACH SL203-B is a 8” chuck strong, heavy- duty and multi-tasking CNC lathe designed to help component manufacturers increase their productivity and competitive advantage.
The machine has a long bed (610mm turning length), and is equipped with driven tools (XkW/rpm) and full C-axis capability. The machine has a XkW/4,200rpm spindle (66mm spindle bore capacity), and can be supplied with the latest control - either the Fanuc 0iTD (with a 10.4” console and AiCC Graphic Display) or the Siemens 828D (with the full version of ShopTurn software onboard).
The MACH SL-203B is also supplied (as standard) with a tailstock, MPG, tool probe, parts catcher and swarf conveyor.
Machine Specification
MACHINE WEIGHT 5000 Kkg
TRAVEL X/Z 230/610 mm
MAX SPINDLE SPEED 4200 RPM
MAXIMUM TURNING LENGTH 610 mm
MAXIMUM TURNING DIAMETER 410 mm
CHUCK SIZE 8" Chuck
MAXIMUM SWING 610 mm
SPINDLE BORE 66 mm
SIZE H 2840mm x W1916mm x D 1850mm
POA
