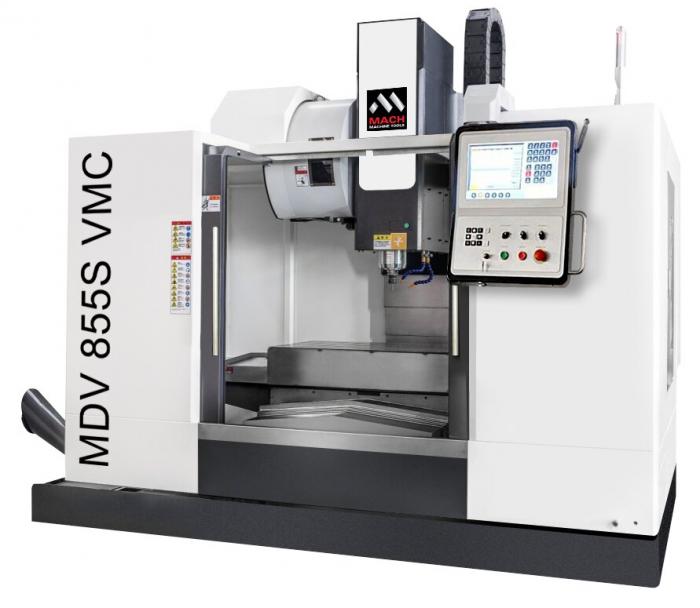

MACH MDV 855 SS
Vertical Machining Centre
 |
|
Equipment and Features
MACH Machine Tools’ new, heavy-duty, production-led and competitively-priced MDV 855S vertical machining centres equipped with the advanced DynaPath control are tough and uncompromising, and are always ready to put in a shift. The ’S’ model is equipped with a 12,000 direct-drive spindle with chiller and TSC capability. The machine is supplied, as standard, with an impressive range of technology features.
Machine standard specification includes - 15.6” touch screen, DXF File Reader, MPG hand wheel, Air draw bar, Auto lubrication, Wi-Fi enabled for remote online support.
Machine Specification
SPINDLE TAPER BT40/CAT 40
SPINDLE RPM 12,000 (DIRECT-DRIVE)
SPINDLE POWER 11 KW
TABLE LENGTH 1000 MM
TABLE WIDTH 500 MM
X-AXIS TRAVELS 800 MM
Y-AXIS TRAVELS 550 MM
Z-AXIS TRAVELS 500 MM
MAX TABLE LOAD 500 KG
POA
