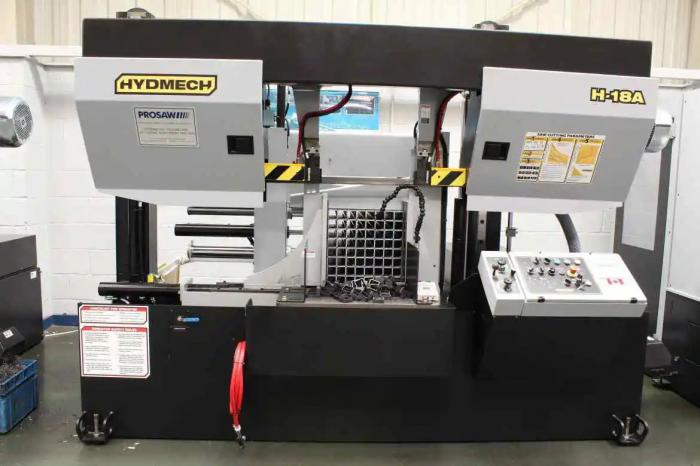

Hydmech H 18A
New Twin Column Automatic Band Saw
 |
|
Equipment and Features
The H-18A is an automatic horizontal band saw providing accurate 90° metal cutting for medium to heavy-duty applications.
The H-18A cuts fast, with its high-speed shuttle feed indexing up to 34″ in a single movement. Its standard split front vice delivers a short material remnant length, reducing material waste.
Featuring an 18″ x 18″ capacity, 10 HP motor, and 1 1/2″ blade, the H-18A is a reliable choice for all your horizontal metal cutting applications.
The best cost per cut performance in its class
One piece design – no alignment necessary
Spilt front vice
Cast iron shuttle features automatic multi-indexing up to 34” in a single stroke with automatic kerf compensation
Steel guide arms. The idler side guide arm is mechanically connected to the front vice moveable jaw for proper guide arm spacing at all times
10 HP True direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vices
Hydraulic positive down feed
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Blade chamber separates material from cut part
Cast iron band wheels
Automatic PLC control programmable up to 99 jobs with 5 in queue
Replaceable blade brush
Robust steel base
Automatic chip removal auger
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
Hydraulic carbide guide tensioning
Hardened, replaceable wear plates
Safety door interlocks
Flood coolant with wash down hose
Work light
Variable vise pressure
Out of stock switch
Machine Specification
Optional Features
Full capacity hydraulic bundle clamps
Blade deviation monitor
Mist lubrication
Out of stock switch
Vertical alignment rollers
Pedestal Control
Laser light
Roller discharge table
Idler conveyors and accessories
Powered conveyors and accessories
