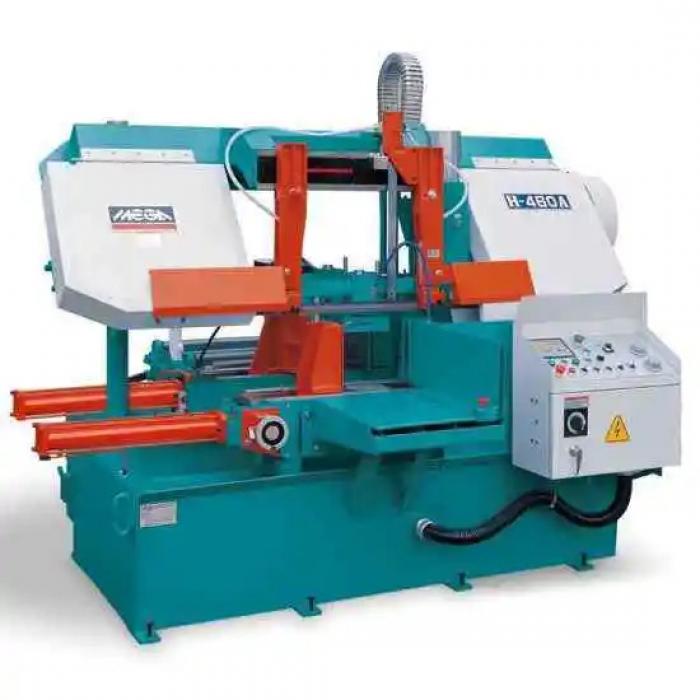

Mega H 460A
New Auto Horizontal Band Saw
 |
|
Equipment and Features
Heavy duty, vice feed automatic twin column bandsaw, designed for all types of material including solids and heavy wall sections.
Optional Features
Variable blade speed from 20 ~ 80 m/min
Vice pressure reduction
Amplifying valve for auto-adjusting cutting feed-rate
GA Numeric control
Cutting depth control
Machine Specification
Fixed blade speeds of 25, 32, 42, 55, 70 & 80 m/min
LED Blade speed readout
Bundle clamps fitted as standard to both front and rear vice for multiple bars cutting
Multi pass to facilitate the cutting of components that are longer than the 400mm material feed stroke
Split front vice to minimise burr by clamping both sides of the material either side of the blade
Automatic 'fast approach' T Bar and bow raise
Blade monitor to automatically stop the machine in the event of a blade break/jam
41mm wide blade
Powered Swarf Brush
Automatic swarf conveyor
Cuts sections and solids, including stainless steel and exotics!
Hydraulic blade tension for easy blade change and accurate, fast cutting
Easy operation with full stroke hydraulic vices
High accuracy on squareness and cut length
Shadow Lamp
