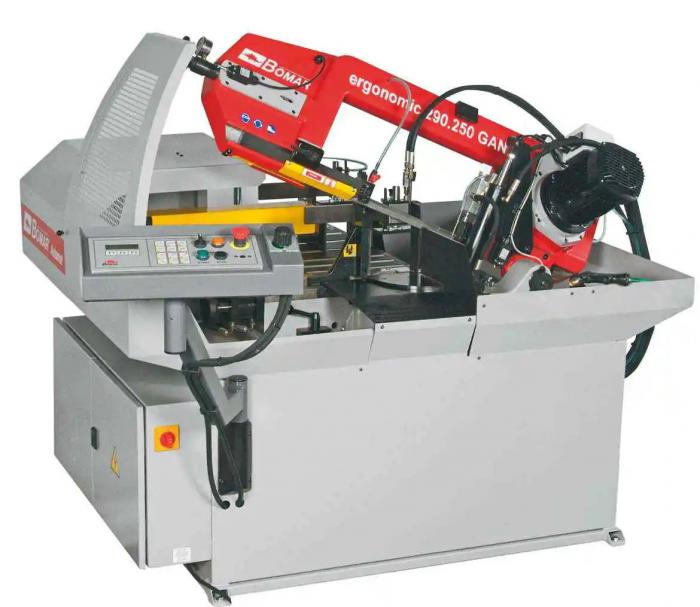

Bomar Ergonomic 290.250 GANC
New Horizontal Band Saw
 |
|
Equipment and Features
The Bomar Ergonomic 290.250GANC is an automatic mitre bandsaw with NC controls ideal for sections and small solid material. Its saw bow rotates for mitre cutting to 60°. The hydraulic downfeed control benefits from an automatic cutting pressure control. The feeding length is 600 mm.
Machine Specification
Robust, one piece, cast iron saw bow
Saw bow rotates for mitre cutting up to 60° (45° in auto mode)
NC Controls
99 lines for programming, fault diagnostics, machine status report
Positive hydraulic downfeed with automatic pressure sensing control
600mm single pass vice feed length, multiple feed for longer lengths
Encoder head height setting to reduce cycle times
Tungsten Carbide pads and roller bearings for accurate cuts
Swarf brush assembly for cleaning blade
Heavy duty blade tensioning unit with indicator
Heavy duty, 3 phase motor
Recirculating coolant pump
Moveable guide arm adjustable according to section size
Heavy duty gear train
2 blade speeds
FOR A QUOTATION PLEASE EMAIL YOUR CONTACT DETAILS & THE MACHINE MODEL NUMBER - THANK YOU
