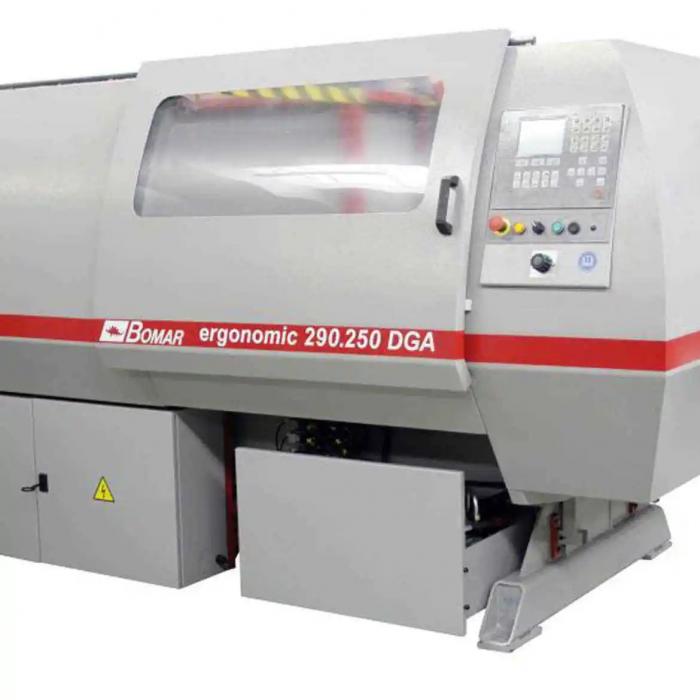

Bomar Ergonomic 290.250 DGANC
New Auto Two Way Mitre Horizontal Band Saw
 |
|
Equipment and Features
The Bomar Ergonomic 290.250DGA is an automatic two-way mitre-cutting bandsaw (–45° to +60°) and is a fully NC controlled machine. It is designed for automated medium to high quantity cutting of steel sections with straight and mitre cuts.
Machine Specification
Robust, one piece, cast iron saw bow
NC Controls
99 lines for programming, fault diagnostics, machine status report
Automatic rotation of mitre angle
Positive hydraulic downfeed with automatic pressure sensing control
1500mm single pass vice feed length, multiple feed for longer lengths
Fast approach ‘T Bar’ to reduce cycle times
Tungsten Carbide pads and roller bearings for accurate cuts
Swarf brush assembly for cleaning blade
Heavy duty blade tensioning unit with indicator
Heavy duty, 3 phase motor
Recirculating coolant pump
Moveable guide arm adjustable according to section size
Heavy duty gear train
Steplessly variable blade speed 20-120 m/min
FOR A QUOTATION PLEASE EMAIL YOUR CONTACT DETAILS & THE MACHINE MODEL NUMBER - THANK YOU
