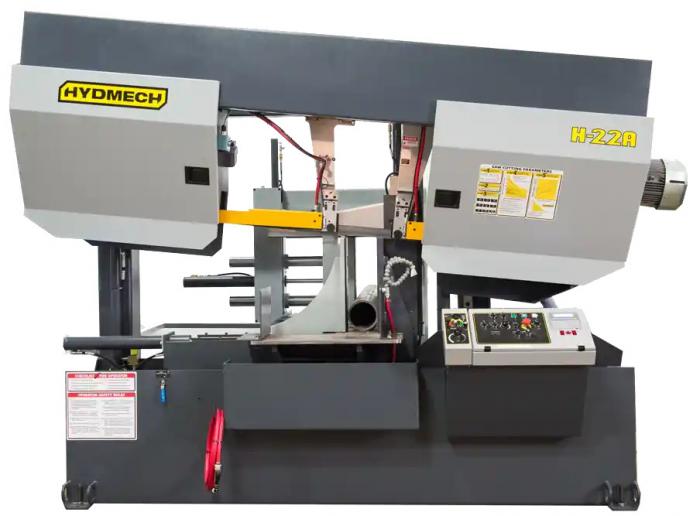

Hydmech H 22A
New Automatic Horizontal Band Saw
 |
|
Equipment and Features
The H-22A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.
The H-22A is fast, with its high speed shuttle feed indexing up to 863mm in a single movement. Its optional 6° degree canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life.
Featuring a 558mm x 558mm capacity, 7.5kW motor, and 54mm blade, the H-22A is a reliable choice for all your heavy-duty horizontal metal cutting applications.
Optional Features
Full capacity hydraulic overhead bundling
6 degree canted head
Blade deviation
Mist lubrication
Outboard vise
Outboard vise/w bund
Pedestal control
Roller discharge table
Vertical alignment rollers
Laser light
Idler & powered conveyors
Powered conveyors
Machine Specification
One piece design – no alignment necessary
Spilt front vice allows for short remnant length
Shuttle features automatic multi-indexing up to 863mm in a single stroke with automatic kerf compensation
Steel guide arms. The idler side guide arm is mechanically connected to the front vice moveable jaw for proper guide arm spacing at all times
Hydraulic positive down feed
Blade chamber separates material from cut part
7.5kW True direct blade drive – no belts/pulleys Full capacity, full stroking hydraulic vices
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Cast iron band wheels
Automatic PLC control programmable up to 99 jobs with 5 in queue
Replaceable blade brush
Robust steel base
Automatic chip removal auger
Out of stock switch
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
Hydraulic carbide guide tensioning
Hardened, replaceable wear plates
Safety door interlocks
Flood coolant with wash down hose
Work light
Variable vise pressure
