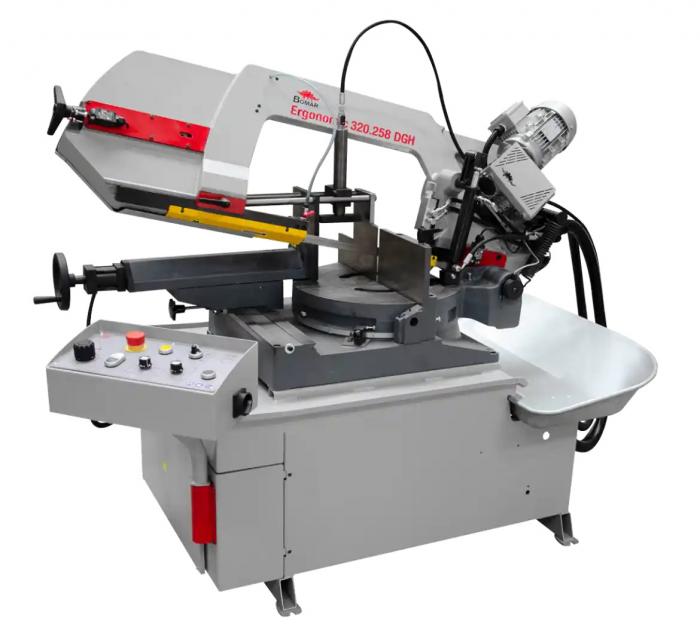

Bomar Ergonomic 320.258 DGH
New Semi Auto Horizontal Band Saws
 |
|
Equipment and Features
The ALL NEW Bomar Ergonomic 320.258DGH is a semi automatic mitre bandsaw ideal for the general fabricator or production of steel structures. Mitre cutting in both directions to 45° left 60° right with a large easy-to-read mitre scale. This machine also has variable blade speed to cope with a wide variety of cutting applications. There is also a hydraulic clamping device with a short stroke hydraulic cylinder.
Machine Specification
Heavy duty one-piece cast bow
Hydraulic-powered bow raise with selectable return height
Hydraulic control of downfeed rate with adjustable back-off valve
Substantial hydraulic vice with minimal opening for repetitive cut
Bow rotates 45-0-60° with stops every 15°
Turntable bed with easy to read mitre scale
Substantial vices, quick set lever operation
Tungsten carbide blade guide pads and roller bearings
Swarf brush assembly for cleaning blade
Heavy duty blade tensioning unit with indicator
Heavy duty, 3 phase motorRe-circulating coolant pump
Adjustable guide arm
Heavy duty gear train
Blade speed: variable from 20 to 120 m/min
500mm length stop included
FOR A QUOTATION PLEASE EMAIL YOUR CONTACT DETAILS & THE MACHINE MODEL NUMBER - THANK YOU
