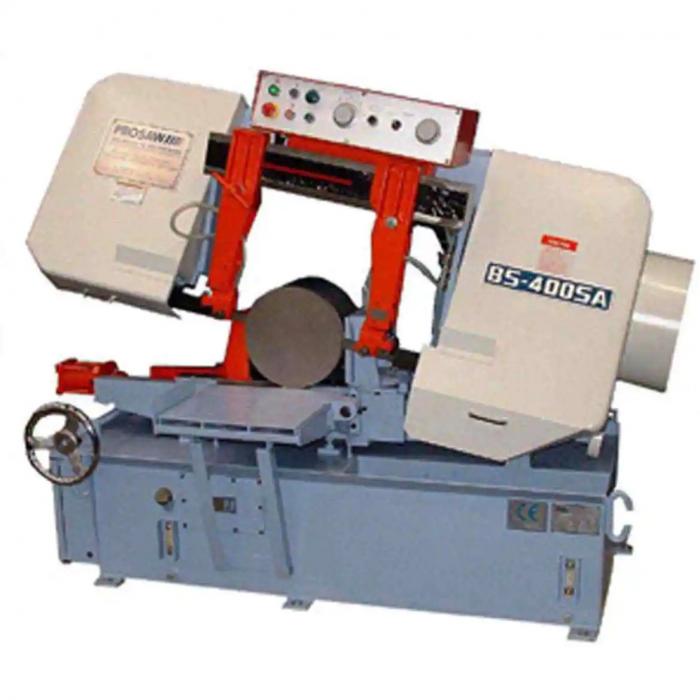

Mega BS 400 SA
New Semi Auto Horizontal Band Saw
 |
|
Equipment and Features
Heavy duty, semi-automatic hydraulic bandsaw for heavy wall sections, heavy beam work and solid billets including stainless steel and exotics. Hydraulic Blade Tension, Blade Height Return Setting, Central Control Panel.
Optional Features
Variable blade speed control
Automatic chip conveyor
Mitre cutting device
Machine Specification
Belt driven selected blade speeds of 25, 32, 42, 55, 70 & 80m/min
Blade monitor to automatically stop the machine in the event of a blade break/jam
Blade width 34mm (41mm option available)
Very heavy-duty construction for cutting of solid billets including stainless steels and inconels
Hydraulic bow lift and hydraulic vices
Hydraulic blade tension for easy blade change and accurate, fast cutting
Semi Automatic head height setting
Shadow lamp positioned above blade to aid accurate positioning of material
Recirculating coolant system
Serrated, hydraulic lift roller within the bed of the machine raises when the vices are unclamped
