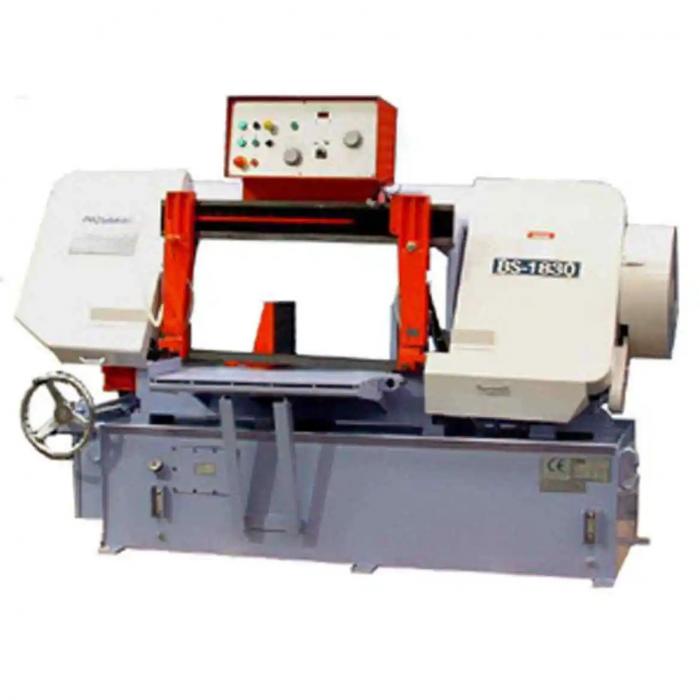

Mega BS 1830
New Semi Auto Horizontal Band Saws
 |
|
Equipment and Features
Heavy duty, semi-automatic hydraulic bandsaw for heavy wall sections, heavy beam work and solid billets including stainless steel and exotics. Hydraulic Blade Tension, Central Control Panel, 41mm Wide Blade and Large 760mm Wide Capacity.
Optional Features
Variable blade speed control
Automatic chip conveyor
Mitre cutting device
Machine Specification
Belt driven selected blade speeds of 25, 32, 42, 55, 70 & 80m/min
Blade monitor to automatically stop the machine in the event of a blade break/jam
Blade width 41mmPowered Swarf Brush
Very heavy-duty construction for cutting of solid billets including stainless steels and inconels
Hydraulic bow lift and hydraulic vices
Hydraulic blade tension for easy blade change and accurate, fast cutting
Semi Automatic head height setting
Shadow lamp positioned above blade to aid accurate positioning of material
Recirculating coolant system
Serrated, manual bar feed roller within the bed of the machine raises hydraulically when the vices are unclamped
FOR A QUOTATION PLEASE EMAIL YOUR CONTACT DETAILS & THE MACHINE MODEL NUMBER - THANK YOU
