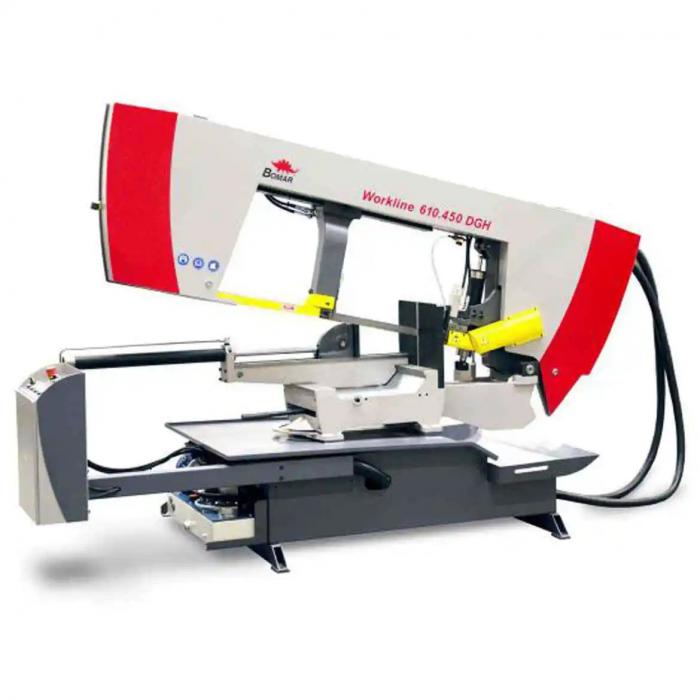

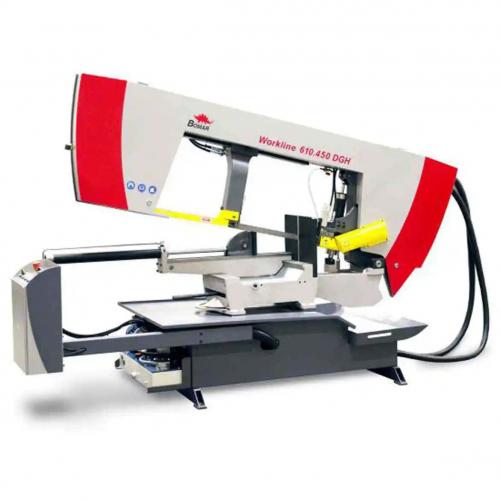

Bomar Work Line 610.450 DGH
New Semi Auto Horizontal Band Saws
 |
|
Equipment and Features
The Bomar Workline 610.450DGH is a semi-automatic mitre bandsaw ideal for the general fabricator or production of steel structures. Mitre cutting in both directions to 60° with a large easy-to-read angular scale. This machine also has a digital readout of the mitre angle, an adjustable hydraulic pressure regulation downfeed valve and variable blade speed to cope with a wide variety of cutting applications.
Machine Specification
2 way easy mitre cutting – 60° right, 60° left
Easy to read mitre scale
DRO for mitre angle
Full stroke hydraulic vice
Powered bow raise
Adjustable back off valve for optimising downfeed speed relative to material mass
Control box mounted on swinging arm
Simple, robust push button controls
Variable blade speed 20 to 120m/min
Dovetail sliding vice for mitre cutting
34mm blade width
Bed height: 781mm
