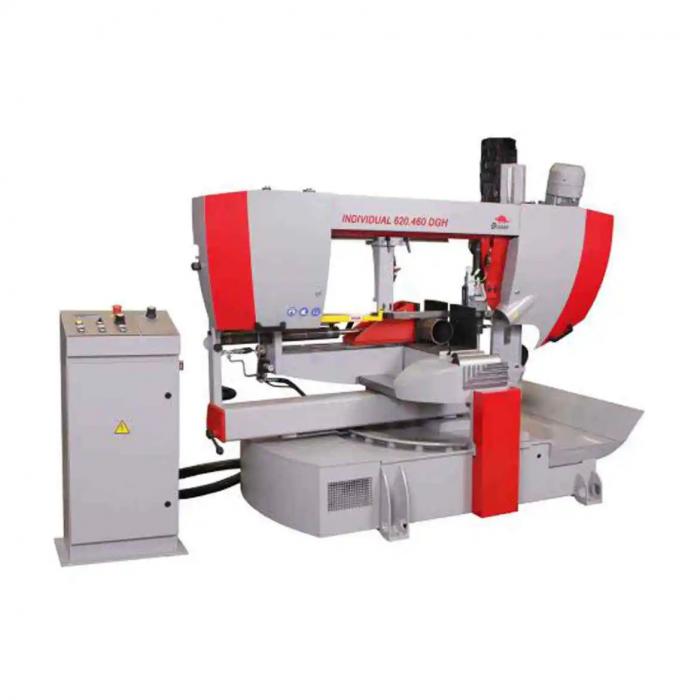

Bomar Individual 620.460 DGH
New Semi Auto Horizontal Band Saw
 |
|
Equipment and Features
The Bomar Individual 620.460DGH is a double mitre semi-automatic twin column bandsaw with a bevel range of 60° in both directions designed for straight and mitre cutting section materials.Bomar
Individual 620.460DGH Technical Details
Play-free
The vice is guided on hardened, ground rails. The special design allows the slide rails to be readjusted at any time and the vice to be held play-free.
Precision
Large tungsten carbide pads fitted to vibration-damping cast material and low-wear rollers guide the blade perfectly for precise and accurate cuts.
Full length cylinders
Generously sized full stroke cylinders allow the vice clamping and unclamping operation from the control panel.
Saw band tensioner
Standard equipment includes a hydraulic band tension display, an electronic monitor for saw blade tension and saw band breakage.
AFDR (Automatic Down Feed Regulation)
Cutting feed and cutting pressure are set individually at the control panel. The selected cutting pressure is displayed on a gauge.
The ADFR system regulates the cutting pressure and the cutting feed rate automatically in real time. A sensor gives the current load on the blade and regulates the cutting feed according to the shape and cross section of the material. For larger cross cuts, the cutting channel lengthens and the saw band's load increases which activates the ADFR valves to reduce the downfeed rate automatically. If the cutting feed in these ranges is not automatically adjusted, blade life drastically decreases and/or accuracy is lost!
Optional Features
Bundle Clamps
MQL Mist Spray Lubrication
Hydraulic Blade Tension
Laser illumination of actual saw cut line
Additional Auxiliary Coolant Hose & Gun
Digital Readout of Mitre Angle
Blade Deflection Monitor
Vice Pressure Regulation
Powered Mitring
Low Voltage Worklamp
NC Control Measuring Stop
Powered Rollerways
Mitre Connection Roller Tables
Machine Specification
2 way mitre cutting to 60° in both directions
Material clamped at 90° to the datum vice face, irrespective of mitre angle to be cut
Integrated material rollers up to the saw machine's support tables
Large, precise V-guide block for the adjustable guide arm
Powered swarf brush synchronised to the blade speed
Large, easily visible mitre scale readable right from the pivoting console
Vice with full-length hydraulic cylinder and special adjustable guide on hardened, ground rails
Digital display of exact mitre angle
Twin column design, saw bow supported on twin linear bearings
Hydraulic downfeed control with automatic cutting control
Variable blade speed
