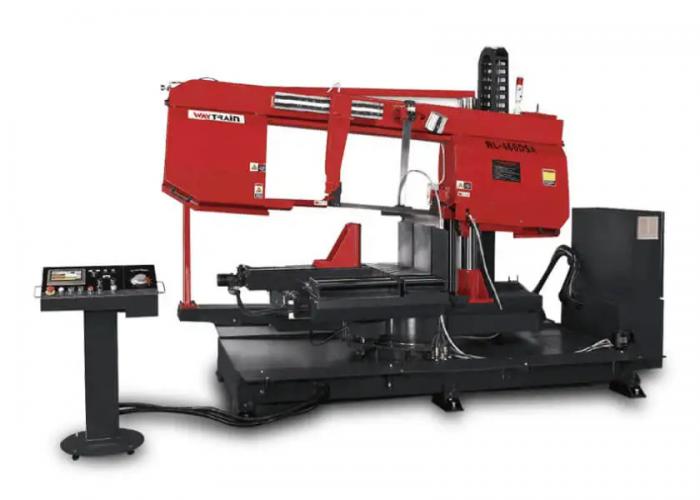

Way Train RL 460 DSAR
New Semi Auto Horizontal Band Saws
 |
|
Equipment and Features
The Waytrain RL-460DSAR is a double mitre semi-automatic twin column bandsaw with a hydraulic powered swiveling bow to cut mitre angles up to 45° Right & 60° left.
Designed for straight and mitre cutting wide section materials, such as H Beam.
Machine Specification
Very heavy build, designed for section cutting
Automatic mitre rotation set via console
Automatic vice movement when mitring
Mitre up to 45° Right & 60° Left
Powerful 5.7kW motor
Full stroke hydraulic vice with pressure regulator
5° Canted bow for cutting sections or plate
Powered bow raise
Variable blade speed with scale - 30 to 85m/min
Fast approach (T-Bar)
Re-circulating coolant pump
Hydraulic blade tension
Blade width 41mm
