Hydmech VW 18
New Semi Auto Vertical Band Saw
 |
|
Equipment and Features
One of a kind in the HYDMECH line up, with its saw head that can cut at 90° and its adjustable 3 degree canted head.

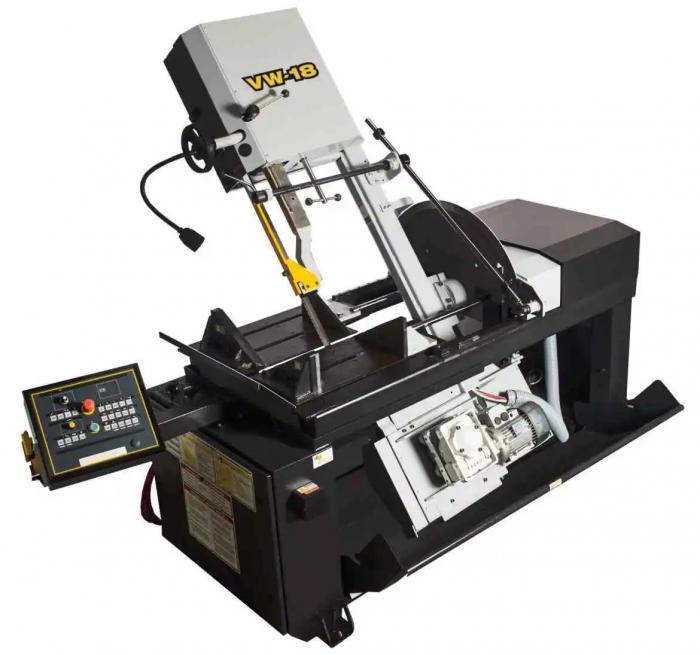

The VW-18 is a semi-automatic, vertical band saw with the ability to mitre from 60° left to 60° right. Featuring a 22″H x 18″W capacity, 5 HP motor, and 1 1/4″ blade, the VW18 is a reliable choice for all your light to medium-duty, vertical metal cutting applications.
Optional Features
Power mitre angle tilt
Chip bucket
Hydraulic overhead bundling clamps
Mist lubrication
Work stopTall square vice inserts
Power transformer
Idler conveyors
Machine Specification
Adjustable 3° canted head
Double articulating, semi-automatic control
Two full stroking hydraulic vises
Manual precise head positioning from 60° left to 60° right
Digital angle display with a protractor
Mechanically adjustable guide arm
On-demand hydraulics save energy
5 HP VFD. True direct blade drive – no belts/pulleys
Hydraulic positive down feed
Cast iron band wheels
Replaceable blade brush
Robust steel base
Easy access electrical panel and hydraulics
Blade breakage switch
Mechanical band tensioning with digital readout
Replaceable carbide guide inserts
0.5 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light and work light
Variable vice pressure
