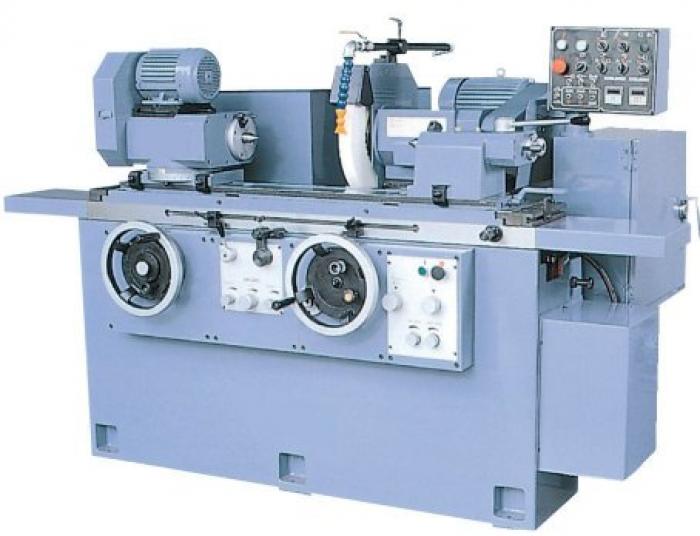

Ajax AJG27

(New) Cylindrical Grinder

Machine Summary Machine Ref: 344 Manufacturer: Ajax Model: AJG27 Description: (New) Clylindrical Grinder 270mm Max.Swing Electrics: 3 Year: 2024 Price: £0.00 Contact us about this Machine

Equipment and Features

TO REQUEST A QUOTATION PLEASE EMAIL YOUR NAME & COMPANY DETAILS AND THE AJAX GRINDER MODEL NUMBER. - THANK YOU.

Machine Specification

Distance Between Centres:350mm/550mm/750mm
Maximum Swing over Table:270mm Diameter
Maximum Grinding Diameter:250mm
Maximum Loading between Centres: 60 Kgs

Wheelhead

Swiveling Angle:(R&L)+/- 15 deg.
Infeed Travel:250mm
Hand Feed Travel:250mm
Automatic Rapid Travel:25mm
Automatic Infeed Incremental:0.001 - 1.8mm
Handwheel Movement per Division: 0.005mm
Handwheel Movement per Revolution:2mm
Grinding Head Motor Power:3.75 Kw
Grinding Spindle Speed:1650 / 1850 / 2100

Grinding Wheel:405mm Diameter
Width:32mm to 50mm
Bore:152mm
Wheel Speed:1650 / 1850 / 2100 rpm

Table

Swiveling Angle:6/9 deg.
Traverse Speed:50 to 4000mm/min.Variable
Hand Wheel Movement per Revolution: 12.5mm

Work Head

Swivel Angle:30/90 deg.
Spindle Speeds:50/75/100/150/200/250
Spindle Taper:4 MT
