Xyz 710

Vertical Machining Centre

Machine Summary Machine Ref: 4870 Manufacturer: Xyz Model: 710 Description: Vertical Machining Centre Year 2012 Electrics: 3 Year: 2012 Price: £0.00 Contact us about this Machine

Equipment and Features

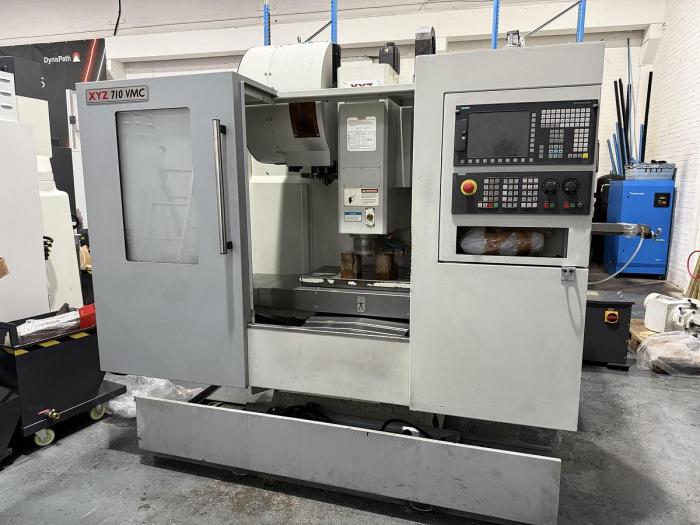

Used 2012 XYZ VMC 710, fitted with 24 Tool Side-Mount ATC, Siemens 828D Control with ShopMill.

Machine Specification

Table Size. 760 x 430 mm

Max Table Load Capacity: 500 kg

Distance from Spindle Nose to Table Surface: 150 – 650 mm



AXIS TRAVEL:

X-Axis Travel: 710 mm

Y-Axis Travel: 450 mm

Z-Axis Travel: 500 mm



SPINDLE:

Spindle Taper: BT40

Spindle Speeds: 40 – 8,000 rpm



FEEDRATES:

Rapids: 12,000 mm/min

Cutting Feed Rates (XYZ): 1 – 500 mm/min



TOOL CHANGER:

Type: 24 Tool Side-Mount ATC

Max Tool Weight: 7 kg



DRIVE MOTOR:

Spindle Drive Motor: 11 kW (Main) / 5.5 kW Continuous

Electrical Input: 415V / 3 Phase / 50 Hz




POA
