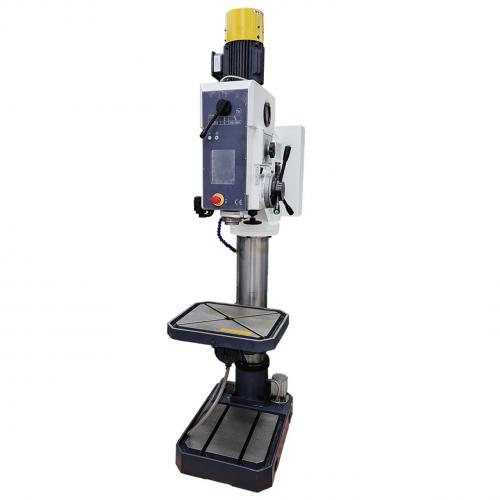

Chester GP 50
Drill
 |
|
Equipment and Features
PC safety guard
Digital speed readout
Powered table elevation
Pressurised lubrication
Electronic clutch
Digital depth gauge
Auto Feed
Auto Tapping
Fine Feed
Drill chuck and arbor
Lamp
Coolant System
Reducing Sleeves
Drill Drifts
Machine Specification
The GP50+ drill comes complete with touchscreen making precision work a breeze,
Model GP50+
Max. drilling diameter (steel) 50mm
Max.tapping diameter (steel) M30
Max.milling cutter diameter (steel) 80mm
Distance between spindle center line to the center line of column 360mm
Max.distance between spindle end to the surface of the worktable (manual/motor) 550/565mm
Max.distance between spindle end to the worktable surface of the base 1165mm
Max.stroke of the spindle 200mm
Spindle taper MT4
Spindle Speed Range 50-2000rpm
Feed steps of the spindle 6 step
Feed range of the spindle 0.08-0.5 mm/r
Max.stroke of worktable and its bracket (manual/motor) 530/410mm
Rotation degree of Spindle box in horizontal axes ±45°
Working area of the worktable (LxW) 580 x 460mm
Working area of the worktable of the base (LxW 445 x 435mm
Numbers and width of the T slots for worktable of base 3-T14, 2-T14
Diameter of column Ø180
Ranging accuracy of hole drilling <=0.10mm
Power and speed of the main motor (variable frequency motor) 3kw
Power and speed of lifting motor for worktable 0.25kw/1440 r/min
Power and flow rate of the coolant pump motor 0.18kw/6 L/min
Machine dimensions (LxWxH) 970 x 680 x 2340mm
Net weight 720/780kg
