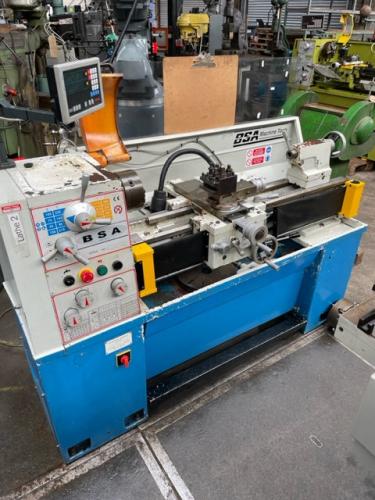

BSA C6236
Gap Bed Centre Lathe
 |
|
Equipment and Features
3 & 4 Jaw Chucks
Inter Locked Chuck Guard
Face Plate
Catch Plate
Quick Change Tool Post plus Holders
2 Point Steady
Taper Turning Attachment
Newall B60 - 2 Axis Digital Read Out System
EX COLLEGE MACHINE
Machine Specification
Swing over the Bed: 360mm Diameter
Swing over the Cross Slide: 255mm Diameter
Swing in the Gap: 580mm Diameter
Distance Between Centres: 1000mm
Spindle Bore: 38mm Diameter
Spindle Motor: 3.3 Kw
16 Ranges of Spindle Speeds: 45 to 1800 rpm
