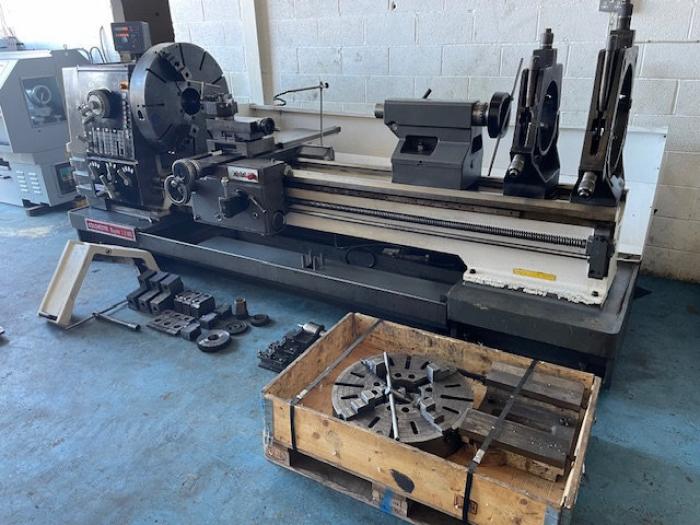

Colchester Magnum LB 800
Gap Bed Centre Lathe
 |
|
Equipment and Features
3 JAW CHUCK. 31 1/2" (800mm)
4 JAW CHUCK. 23 1/2" (600mm)
QUICK CHANGE TOOL POST PLUS HOLDERS.
2 & 3 POINT STEADIES.
HEIDENHAIN DIGITAL READ OUT.
Machine Specification
30 " DIAMETER SWING OVER THE BED
Distance Between Centres: 2250mm
SWING IN GAP: 41" (1040mm)
SPINDLE BORE: 6.625" (168mm)
SWING OVER CROSS SLIDE: 20.5" (520mm)
MAIN MOTOR: 20HP. (15Kw)
