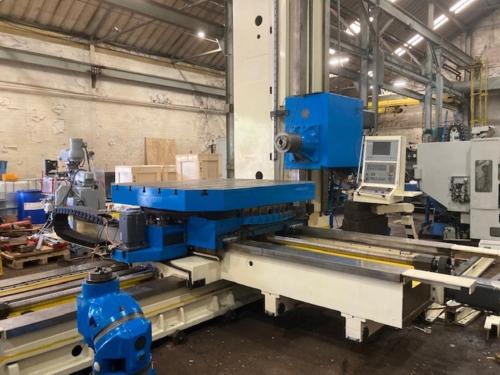

WMW BMT 130 CNC
Cnc Horizontal Borer
 |
|
Equipment and Features
Cnc Control: Heidenhain TNC 426
Machine with Angular Milling Head
Machine Specification
Table Area: 1750mm x 2000mm
Fully Rotational Through Control
Spindle Diameter: 130mm Diameter
Spindle Taper:50 ISO
Spindle Travel: 1000mm
Spindle Speeds: 5 to 3000 rpm
`X` Travel: 3000mm
`Y` Travel: 2400mm
`Z` Travel: 1800mm
THIS MACHINE IS LOCATED AT A SHOWROOM DIVISION IN SCOTLAND AND IF YOU COULD PLEASE EMAIL ME YOUR NAME & COMPANY DETAILS WITH THE MACHINE REFERENCE NUMBER THEN I WILL GET A QUOTATION FORWARDED TO YOU WITH MORE PICTURES - THANK YOU.
