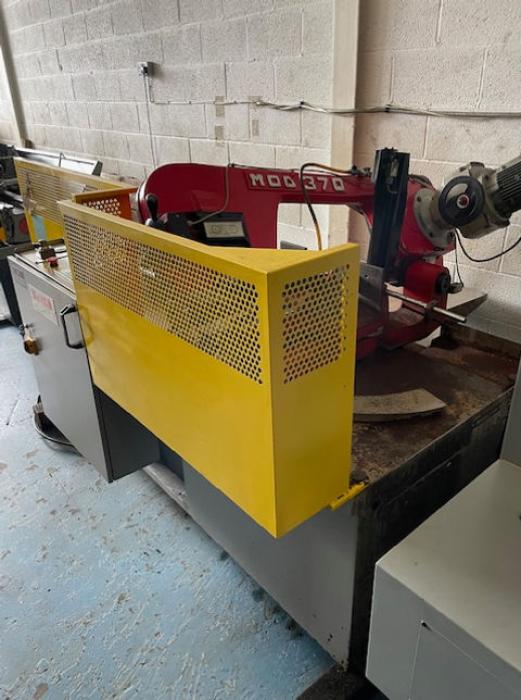

Bianco 370 A
Horizontal Band Saw
 |
|
Equipment and Features
Automatic Vice Power
Fully automatic cutting cycle with hydraulic vice feed system.
PLC control for cut quantities and machine functions.
Handwheel for setting cut length with fine adjustment and mechanical readout.
Downfeed cylinder at the front of the machine for maximum rigidity.
Quick mitring swivel head up to 60° in semi-automatic mode.
Fast and slow blade speeds for mild and stainless steel cutting.
Hydraulic cutting with variable pressure and variable speed.
Hydraulic fixed and feeding vices Shuttle vice facility for long cutting lengths.
Fast approach with auto bow height return setting.
Cast bow construction.
Carbide blade guides for high accuracy.
Powered swarf brush
Machine Specification
MODEL : 370 A 60 DEGREE SWIVEL
Capacity 90° 45° 60° -
Round mm 280 225 140 -
Square mm 240 215 140 -
Rectangular mm 330 x 240 230 x 140 140 x 130
Blade Size mm 3120 x 27 x 0.9
Cutting Speed m/min 10-100
Motor Kw 1.5
Length mm 2800 Width mm 1950 Height mm 1850 Weight
Kg 945
SERIAL No. TL-53/01378
