Mazak Quick Turn 100 MSY
Cnc Lathe
 |
|
Equipment and Features

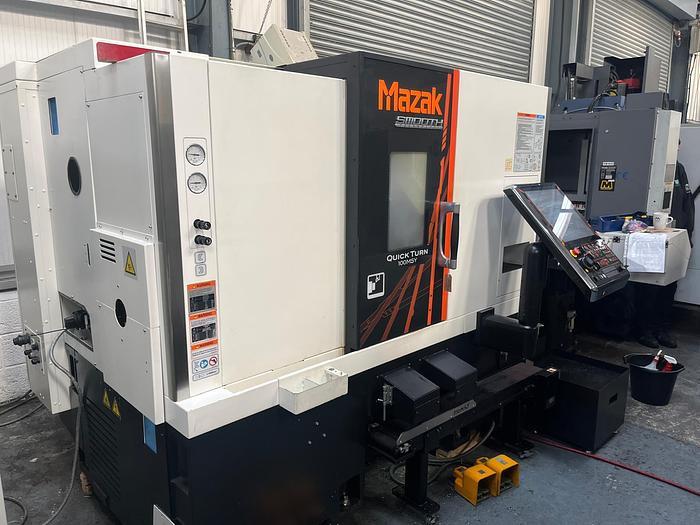

Used 2018 Mazak Quick Turn 100MSY in great condition with Low spindle hours and full service history. Fitted with sub spindle, Y axis, C Axis, Driven tools, Swarf conveyor and a Mazatrol Smooth Control system.
Compact high performance machines designed to meet your production requirements
Due to integral spindle / motor, vibration is minimized during high-speed operation to ensure exceptional surface finishes
Smooth Mill Drive - integral spindle / motor utilized for rotary tool spindle
MAZATROL SmoothG, the advanced CNC designed for ease of operation - standard equipment
Functions for unsurpassed ease of operation-with Y-axis capability
By using the orientation function, high accuracy workpiece transfer from the main spindle to the second spindle can be performed for continuous machining
Machine Specification
Chuck size main spindle 6 "
Chuck size secondary spindle 5 "
Maximum swing 550 mm
Maximum machining diameter 280 mm
Bar work capacity main spindle 52 mm
MAIN SPINDLE
Rotating speed maximum 6,000 min-¹
Motor output (40% ED rating) 15.0 kW
Motor output (continuous rating) 11.0 kW
Maximum torque 184.0 Nm
SECONDARY SPINDLE
Rotating speed maximum 6,000 min-¹
Motor output (25%ED rating) 11.0 kW
Motor output (continuous rating) 7.5 kW
Maximum torque 90.0 Nm
TURRET
No of stations on drum turret 12
Mill spindle motor output (continuos rating) 3.7 kW
Mill spindle motor output (40% ED) 5.5 kW
Mill spindle rotating speed maximum 5,000 min-¹
Mill spindle maximum torque 47 Nm
FEED AXES
Rapid traverse (X axis) 33 m/min
Rapid traverse (Y axis) 21 m/min
Rapid traverse (Z Axis) 33 m/min
Rapid traverse (W axis) 30 m/min
Travel (X axis) 187 mm
Travel (Y axis) 100 mm
Travel (Z axis) 510 mm
Travel (W axis) 460 mm
POA
