Doosan Lynx 300
Cnc Lathe
 |
|
Equipment and Features

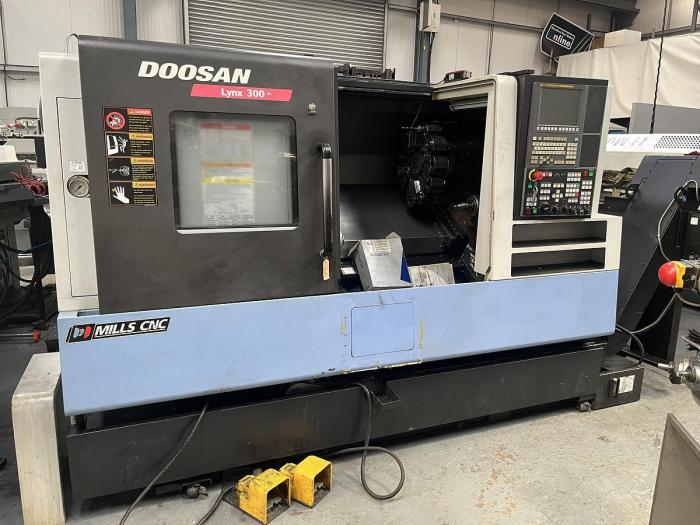

Used 2015 Doosan Lynx 300 CNC Lathe with Swarf Conveyor, Barfeed, Parts catcher, tool setter and 3 Jaw Power Chuck
Machine Specification
CAPACITY
Swing Over Bed: 651 mm
Swing Over Cross Slide: 461 mm
Max Cutting Diameter: 450 mm
Max Cutting Length: 765 mm
Bar Capacity: 76 mm
Chuck Diameter: 304 mm
SPINDLE
Max Spindle Speed: 3,500 rpm
Spindle Nose: A2-8
Spindle Bore Diameter: 86 mm
Spindle Motor Power: 15 / 11 kW
FEED AXES
X Axis Travel: 255 mm
Z Axis Travel: 790 mm
Rapid Traverse (X Axis): 24 m/min
Rapid Traverse (Z Axis): 30 m/min
TAILSTOCK
Quill Diameter: 80 mm
Quill Stroke: 120 mm
Quill Taper: MT#4
CONTROL
CNC System: Fanuc i-Series
SIZE
Machine Dimensions (L x W x H): 3,991 mm x 1,785 mm x 1,715 mm
Approximate Machine Weight: 4,000 kg
POA
