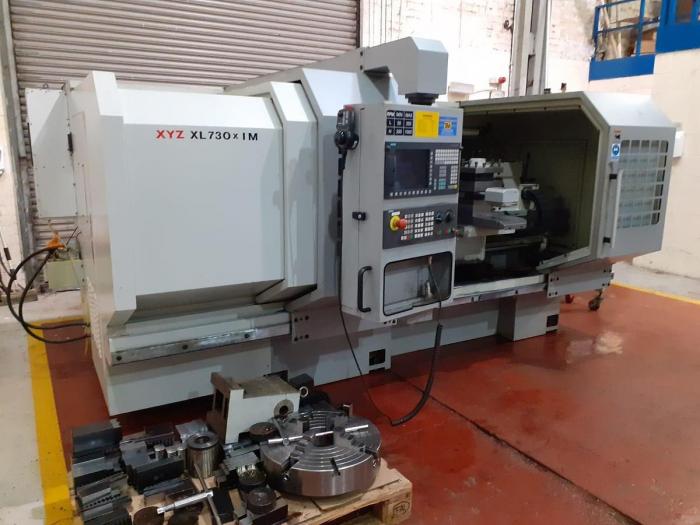

Xyz XL 730 x 1000
Cnc Lathe
 |
|
Equipment and Features
Siemens Sinumerik 828D control. A robust machine with large swing and spindle bore, suitable for a wide range of turning operations. Supplied with 3-jaw chuck, 4-jaw chuck, 4-way indexing toolpost, and swarf conveyor.
CONTROL
Siemens Sinumerik 828 D CNC Control
Full CNC operation
TAILSTOCK
Tailstock included: Yes
Tailstock Taper: MT5
ACCESSORIES
3-Jaw Chuck
4-Jaw Chuck
4-Way Indexing Toolpost
Swarf Conveyor
Machine Specification
A robust machine with large swing and spindle bore,
Full CNC operation
CAPACITY
Swing Over Bed: 730mm
Swing Over Cross Slide: 510mm
Distance Between Centres: 1000mm
Cross Travel (X Axis): 360mm
Longitudinal Travel (Z Axis): 1000mm
MAIN SPINDLE
Spindle Speeds: 50–1000 RPM
Spindle Bore: 130mm
Spindle Motor: 20 HP
TAILSTOCK
Tailstock included: Yes
Tailstock Taper: MT5
POA
