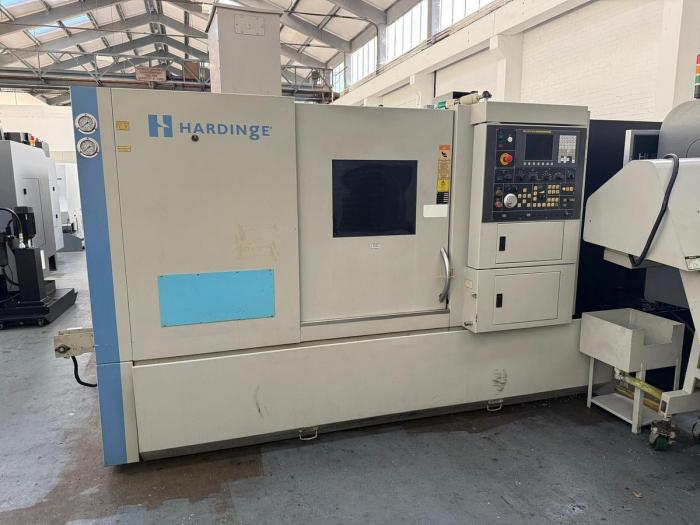

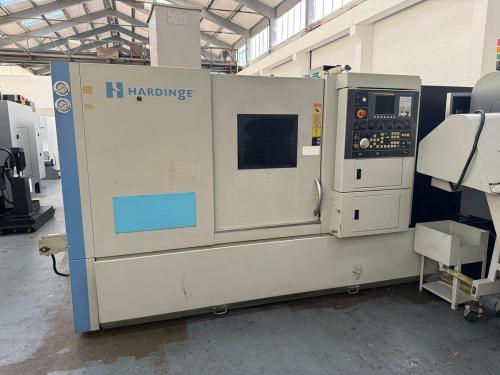

Hardinge GS250
Cnc Lathe
 |
|
Equipment and Features
Used 2011 Hardinge GS250 CNC Lathe with C-Axis & Milling, equipped with Swarf conveyor, Parts catcher, Parts conveyor, Tailstock, 3-jaw power chuck and magazine bar feed. Large amount of static and driven tooling. Well-specified multi-tasking lathe with FANUC Oi-TD control
C-Axis Resolution: 0.001°
TURRET
Stations: 12-station turret
CONTROL
CNC System: FANUC Oi-TD
EQUIPMENT / FEATURES
Swarf conveyor
Parts catcher
Parts conveyor
Tailstock
3-jaw chuck
Magazine barfeed unit
Machine Specification
CAPACITY
Swing Over Bed: 595 mm
Max Cutting Diameter: 356 mm
Max Turned Length: 558 mm
Bar Capacity: 78 mm
SPINDLE
Max Spindle Speed: 3,500 rpm
Spindle Motor Power: 18.5 kW
MILLING
Max Milling Speed: 3,500 rpm
C-Axis Resolution: 0.001°
POA
