Romi G30 M

Cnc Lathe

Machine Summary Machine Ref: 4850 Manufacturer: Romi Model: G30 M Description: Cnc Lathe Year 2008 Electrics: 3 Year: 2008 Price: £0.00 Contact us about this Machine

Equipment and Features

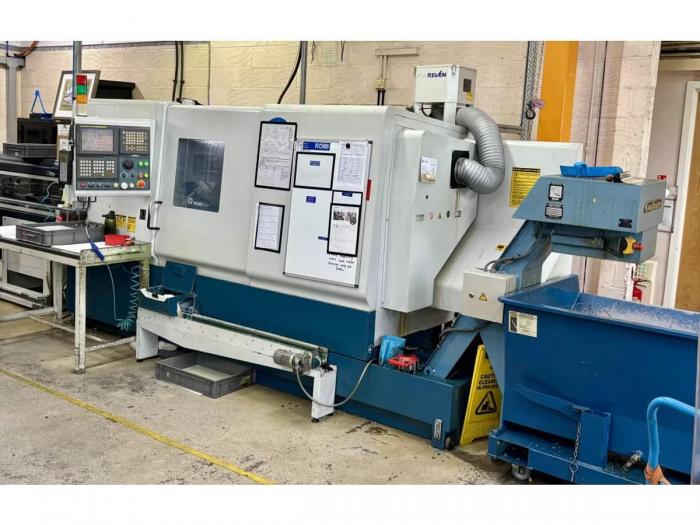

A 2008 ROMI G30M 3-Axis CNC lathe with Fanuc control, 1 Metre turning length, driven tools & C-Axis, fully programable tailstock (835m travel), tool setter, parts catcher & conveyor, servo barfeed, 8” power chuck & swarf conveyor & fitted with a Hainbuch Ø210mm Collet Chuck & Mist Extractor.

Machine Specification

Maximum Swing Ø620mm. Maximum Turning Ø320mm. Maximum Turning Length 1,010mm.

Axis Travel: 255mm X, 1,010mm Z, 'with 0.001° C-Axis Increments

Bar Capacity Ø65mm.

Rapid Traverse 18m/min in X & 24m/min in Z,

Spindle Speed Range 3-3,000rpm (22kW Motor).

12 Station Driven Tool VDi 40 Turret.

Automatic Tailstock Travel 835mm,

Quill Travel 130mm, Quill Ø100mm.



Superperb!

POA
