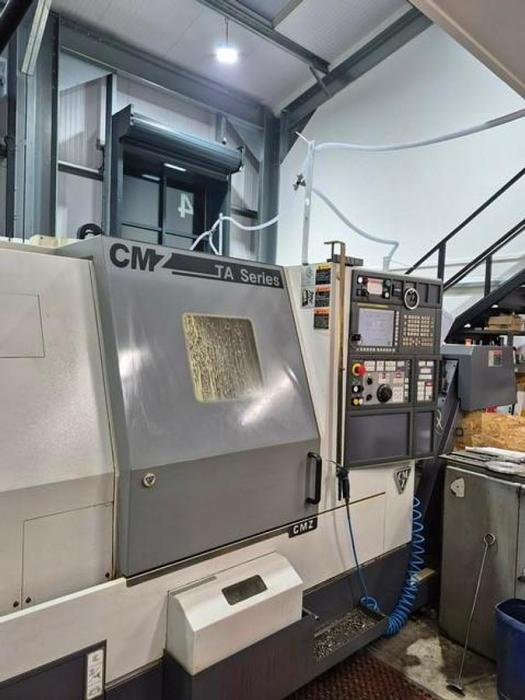

CMZ TL20 TM
Cnc Lathe
 |
|
Equipment and Features
2016 CMZ TA-20TM Fanuc controlled, driven tool C-Axis CNC lathe with Ballscrew driven tailstock, direct drive 22KW main spindle, direct drive 15KW driven tool motor , parts catcher, swarf conveyor, tool arm and suite of driven and static tool holder.
Super Condition
Machine Specification
Control Type: Faniuc
Control Model 32i
Max. Turning Diameter 400mm
Max. Turning Length 640mm
Swing Over Bed 685 mm
Max Turning Dia: 510mm
Spindle Bore: 73mm
Bar Capacity 66 mm
Spindle Nose BoreA2-6
Spindle Speed 4,000 RPM
Main Spindle Power 22KW
Driven Tool Motor Power 15KW
Turret Positions 12
Driven Station: 12
Driven Tool Speed 12,000 RPM
Machine Dimensions: 3500 X 1950 X 190mm
Machine Weight Approx. 5,500 kg
POA
