CMZ TB 67
Cnc Lathe
 |
|
Equipment and Features

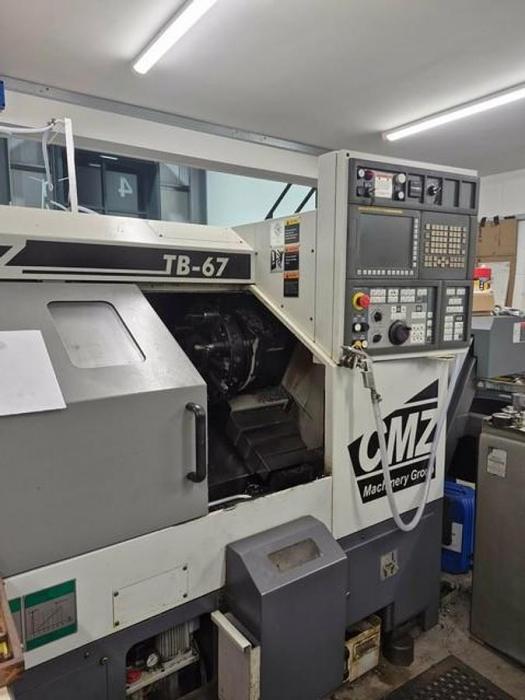

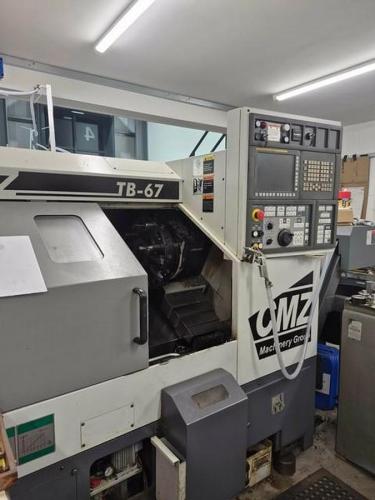

Used 2011 CMZ TB67 presented in immaculate and well maintained condition, and photo'd here whilst still in production...specified as follows:
Machine Specification
Max. Swing Diameter 640mm
Turning length: 400mm
Maximum turning Ø: 340 mm
X-Z travels: 200-400mm
Spindle Nose: A2-6,
Max RPM: 4,000 rpm
Spindle Size / max bar Ø: 66mm
Power: 17.4 Kw
Turret 12 positions.
Tailstock, shank travel: 120 mm
Tailstock Quill Dia: 90mm
X/Z Rapid Feed Rate: 30 m/min
Machine Dimensions (L x W x H): 1,653 x 1,620 x 1,670 mm
Machine Weight: 3,700 kg
Additional Equipment:
Parts Catcher
Swarf Conveyor
Tailstock
Tool Measuring Arm
Suite of tool holders
3-Jaw Hydraulic Chuck
POA
