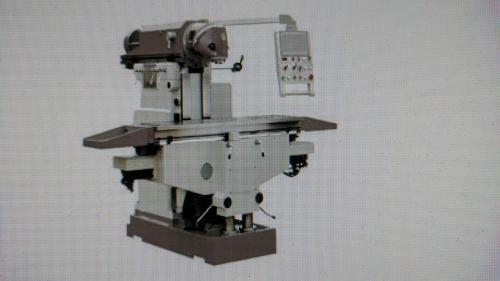

New Chester Victory 500VS Servo
Universal Milling Machine
 |
|
Equipment and Features
3 Axis Power Feed Driven by 1 Servo Motor and Driver
Large Table Area
Compact Design
Universal Head
Horizontal Milling
Standard Accessories:
3 axis DRO system
3 axis power feed
Halogen lamp
Coolant system
Table guard
Manual & parts list
Toolbox
Machine Specification
Table Size: 2000mm x 500mm
Longitudinal travel 1500mm
Cross travel 700/720mm
Vertical Travel 470
Load Capacity 1500kg
Spindle (Vertical)
Spindle Taper ISO50
Number of Speeds 2
Speed Range 53-1800rpm
Spindle Centre to Column 60-760mm
Spindle to Table 50-520mm
Spindle (Horizontal)
Spindle Taper ISO50
Number of Speeds 2
Speed Range 53-1800rpm
Spindle to Table 75-545mm
Longitudinal Feed Rate 10-1000mm/min
Cross Feed Rate 10-1000mm/min
Vertical Feed Rate 6-640mm/min
Rapids Longitudinal 2200mm/min
Rapid Cross 2200mm/min
Rapid Vertical 1460mm
Spindle Drive Motor 7.5kW (10.05hp)
Feed Motor 4.4kW (5.9hp), 28.4Nm
Coolant Motor 0.09kW (0.12hp)
Overall Dimensions 2100 x 2900 x 2000mm
Net Weight 4500kg
TO REQUEST A QUOTATION PLEASE EMAIL YOUR NAME & COMPANY DETAILS & THE MODEL NUMBER OR NAME OF THE MACHINE - THANK YOU.
