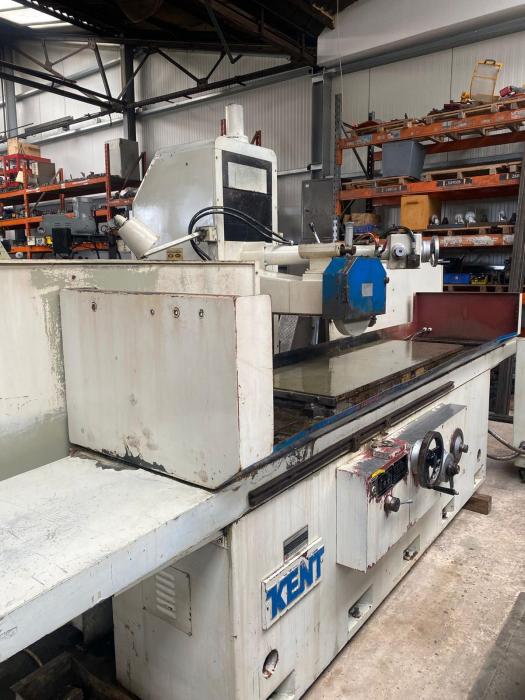

Kent KGS 515 AHD

Surface Grinder

Machine Summary Machine Ref: 4684 Manufacturer: Kent Model: KGS 515 AHD Description: Surface Grinder 60" x 20" Year 2008 Electrics: 3 Year: 2008 Price: £0.00 Contact us about this Machine

Equipment and Features

INCREMENTAL DOWN FEED.

- Automatic Downfeed Increment- Variable (6 Step) 0.0002"-0.0016"

- Coolant Tank & Pump w/Paperbed Filter System

- Magnetic Chuck

Machine Specification

60" x 20" CAPACITY.

- Table Speed (Hydraulic) 13-70FPM

- Rapid Feed 11ipm

- Hydraulic Motor 5HP

- Cross Feed Motor 4/5HP

- Automatic Downfeed Increment- Variable (6 Step) 0.0002"-0.0016"

- Wheel Speed 1750 RPM

Maximum Height Under Wheel 23.6"
Motor HP 18 HP
Spindle Motor Cont. 10HP
Travel (X) 63"
Travel (Z) 22.4:
Wheel Size (Dia/Bore/Width) 14
Wheel Size (OD) 20"

SERIAL No. T-910681-3



Picture to Follow Shortly POA
