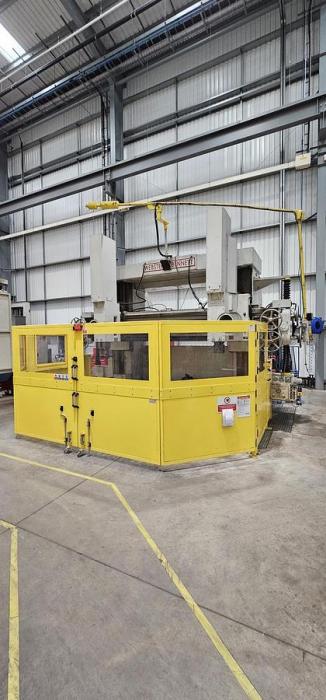

Webster & Bennett 120
Vertical Boring Machine
 |
|
Equipment and Features
Double Column
Left hand ram slide and Right hand ram slide.
Pendant control.
2 Axis D.R.O. to right hand ram.
Toolholders and large selection of table jaws.
Coolant.
CONDITION :- EXCELLENT.
Machine Specification
Diameter of table:108” 2743 mm
Diameter of work turned with ram: 120” 3048 mm
Diameter of work admitted: 122” 3100 mm
Height from table to underside of cross-slide: 78” max. 1981 mm / 609mm 24" Min.
Vertical travel of ram: 48” 1219 mm
Horizontal travel of ram (Table centre outwards):66” 1676 mm
Centre to face of cross slide: 17” 432 mm
Maximum load on table:44800 lb 20320 kg
Range of feeds::(12) .0025 - .125 ins/rev.
Range of speeds:(12) 1.5 – 39.5 rpm
Main motor: 37 kW 50 HP
Approximate total weight of machine: 100800 lb 45720 kg
