Xyz 1060 VMC HD
Vertical Machining Centre
 |
|
Equipment and Features

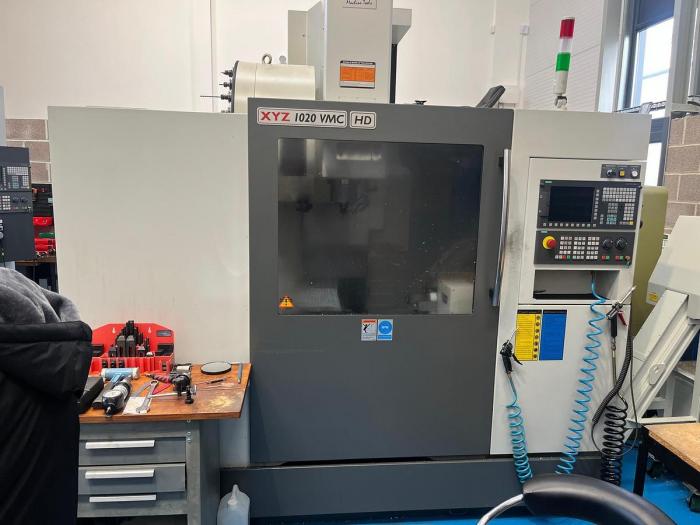

An immaculate XYZ VMC 1020HD vertical machining centre, with Siemens 828D & ShopMill control, 8,000 RPM spindle, 24 tool side mount tool change, fitted with 4th Axis, swarf conveyor & supplied with a suit of tool holders.
Machine Specification
Table size.1200MM X 450MM.
Table load.500 KGS
.Longitudinal traverse. X AXIS 1020MM.
Cross traverse. Y AXIS 500MM.
Vertical traverse. Z AXIS 500MM.
Speeds. 40-8000 RPM
Feed rate.1-500MM / Min with 12,000mm / min Rapid
Spindle nose to table.150-650MM.
Spindle taper.BT40.
Automatic tool changer.with.24 Tools Tool weight.7 KGS.
Input.415/3/50 AC 5.5 KW CONTINUOUS,
11 KW Main Motor
POA
