Xyz VMC 800 HD
Vertical Machining Centre
 |
|
Equipment and Features

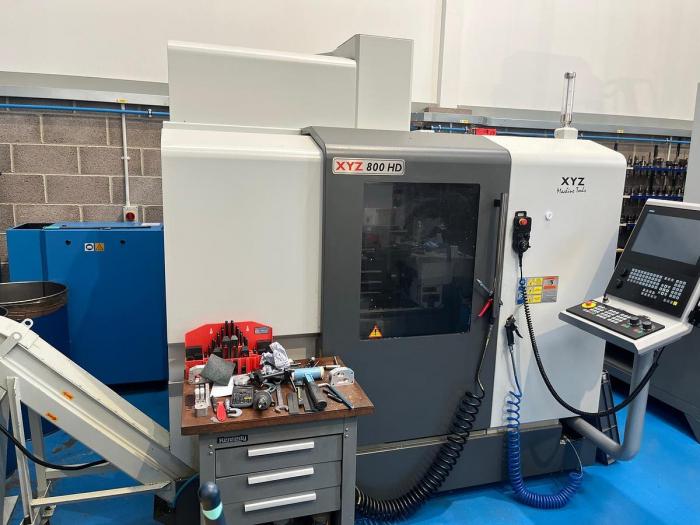

A used but immaculate 2018 built XYZ VMC 800-HD with Wide Screen Siemens 828D control with Shopmill, 10,000 RPM, 24 tool ATC & fitted with 4th Axis, swarf conveyor and a suite of tooling.
Siemens 828D with Shopmill
Optimised Digital Servo Drives.
Machine Specification
Spindle: 21kW (28hp) 10,000 rpm
Table Size: 920 x 480mm
Travels: 800 x 500 x 510mm
Machine Weight: 4,400kg
Conforming to ISO 10791
Positional accuracy: +/- 5 microns
Repeatability: = +/- 2 microns
Circularity over 300mm: 10 microns
Geometric accuracy over 300mm: 10 microns
Hardened Table.
Rigid Tapping.
High Pressure Flood Coolant.
LED Worklight.
24 Station Arm Type.
Remote Electronic Handwheel.
Networking.
USB Port.
Swarf Conveyor & Bin.
POA
