Xyz VMC 1020 HD

Vertical Machining Centre

Machine Summary Machine Ref: 4691 Manufacturer: Xyz Model: VMC 1020 HD Description: Vertical Machining Centre Year 2017 Electrics: 3 Year: 2017 Price: £0.00 Contact us about this Machine

Equipment and Features

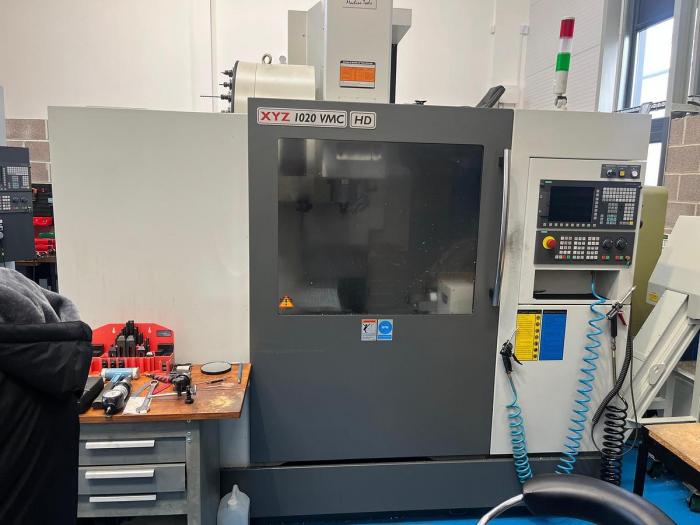

Briefly, a 2017 immaculate XYZ VMC 1020HD vertical machining centre, with Siemens 828D & ShopMill control, 8,000 RPM spindle, 24 tool side mount tool change, fitted with 4th Axis, swarf conveyor & supplied with a suit of tool holders.

Machine Specification

Table size.1200MM X 450MM.

Table load.500 KGS

.Longitudinal traverse. X AXIS 1020MM.

Cross traverse. Y AXIS 500MM.

Vertical traverse. Z AXIS 500MM.

Speeds. 40-8000 RPM

Feed rate.1-500MM / Min with 12,000mm / min Rapid

Spindle nose to table.150-650MM.

Spindle taper.BT40.

Automatic tool changer.with.24 Tools Tool weight.7 KGS.

Input.415/3/50 AC 5.5 KW CONTINUOUS,

11 KW Main Motor

POA
