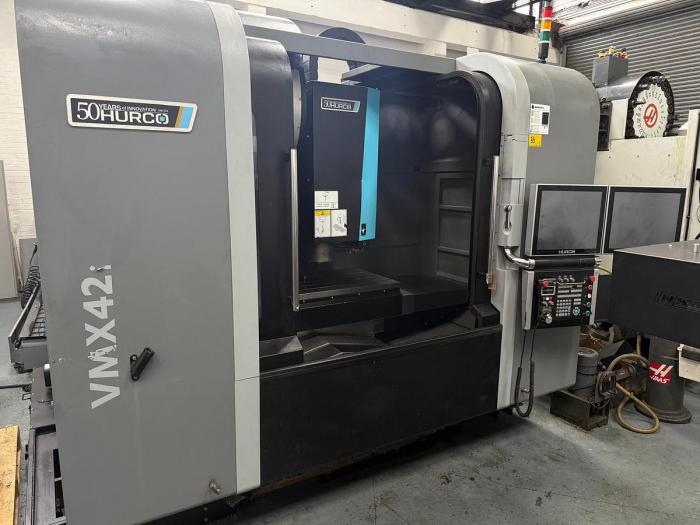

Hurco VMX42Ti
Vertical Machining Centre
 |
|
Equipment and Features
Used 2018 Hurco VMX42Ti, fitted with 12,000 RPM spindle with spindle chiller, swarf conveyor, filter mist unit and Hurco MAX5 dual screen WinMax control system.
TOOL CHANGER:
Type: 30 Tool ATC
ADDITIONAL OPTIONS:
Filtermist Extraction Unit
Programmable Air Blast
Rigid Tapping
Machine Specification
TABLE:
Table Size: 1,270 x 610 mm
Max Table Load Capacity: 1,360 kg
Distance from Spindle Nose to Table Surface: 152 mm (min)
AXIS TRAVEL:
X-Axis Travel: 1,067 mm
Y-Axis Travel: 610 mm
Z-Axis Travel: 610 mm
SPINDLE:
Spindle Taper: CAT40
Spindle Speeds: Up to 12,000 rpm
Peak Spindle Motor: 35 kW
Peak Spindle Torque: 119 Nm @ 2,800 rpm
FEEDRATES:
Rapid Traverse (X/Y/Z): 45 / 45 / 40 m/min
Max Programmable Feedrate: 40 m/min
Max Tool Diameter: 76.2 mm
Max Tool Length: 300 mm
Max Tool Weight: 8 kg
MACHINE DIMENSIONS:
Machine Height: 2,860 mm
Floor Space Required: 4,600 x 3,984 mm
Machine Weight: 7,091 kg
POA
