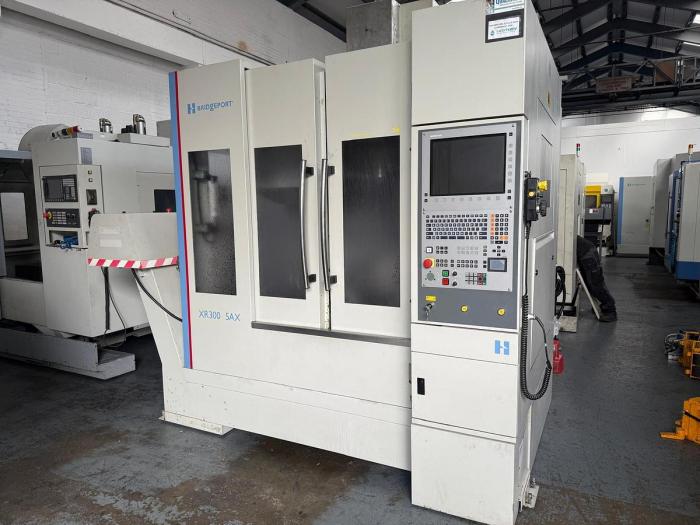

Hardinge Bridgeport XR300 5AX
Vertical Machining Centre
 |
|
Equipment and Features
Used 2011 Hardinge Bridgeport XR300 5AX. Supplied with Heidenhain iTNC 530 Control, 12,000 RPM Spindle with Through Spindle Coolant, Renishaw probing, 30 Station ATC, Swarf Conveyor, Coolant Equipment & Manual Set
Machine Specification
TRAVELS:
X Axis 410 mm, Y Axis 610 mm, Z Axis 500 mm
A Axis +30° to -120°, C Axis Continuous 360°
TABLE:
Diameter 300 mm
Max Swing Diameter 300 mm, Max Weight on Table (evenly distributed) 100 kg
SPINDLE:
Max Rating 25 kW (S6 40%), Max Speed 12,000 rpm, Max Torque 159.2 Nm, Taper BT 40
FEEDRATES:
Rapid and Jog (Max.) 36 m/min
Cutting Feed Rate (Max.) 20 m/min
Rotary Axis Speed 25 rpm
BALL SCREWS:
X & Y Axis 45 x 16 mm
Z Axis 45 x 12 mm
TOOL CHANGER:
Type Rapid ATC, Capacity 30
Max Tool Diameter 125 mm (adjacent pocket), 80 mm
Tool Length Max. 300 mm
Tool Weight Max. 7 kg
COOLANT & CHIP MANAGEMENT:
Swarf Conveyor, Coolant Capacity 355 L
Wash Down Standard, Wash Gun Standard, Cutter Air Blaster Standard
Through Spindle Coolant
Coolant Flow Rate at Cutter 160 L/min
Through Spindle Coolant Pressure 20 bar (Std)
Washdown 140 L/min
GENERALS:
Machine Dimensions (W x D) 2528 x 3000 mm
Air Required 4.9 cfm
Power Supply 25 kVA / 415 V / 3 Phase / 50 or 60 Hz
POA
